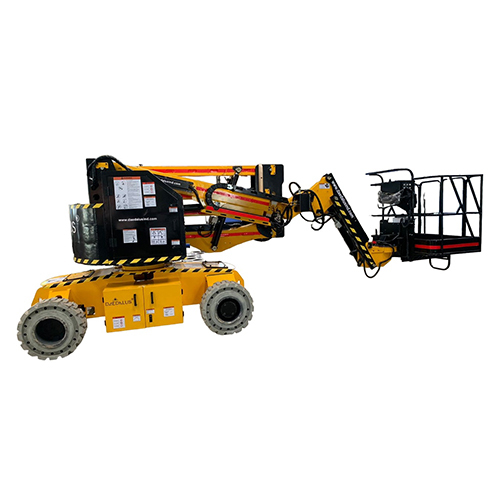

DBA-16 -8 Articulated Boom Lift

Get a Price/Quote

MOQ : 1 Piece

DBA-16 -8 Articulated Boom Lift Specification

Lifting Speed
0.2 - 0.6 m/s

Motor Type
Hydraulic Drive Motor

Handle Type
Ergonomic Control Handle

Wheel Type
Non-marking Rubber Tyre

Features
Self-propelled, Compact Design, Dual Joystick Control

Equipment Type
Mobile Elevated Work Platform

Control System
Proportional Controls

Rotation Type
360 Degree Continuous

Condition
New

Lifting Capacity
230 kg

Max. Lifting Load
230 kg

Max. Lifting Height
16 m

Power Source
Battery Electric

Power Consumption
2.2 kW

Voltage
24V DC

Feature
360 Degree Continuous Rotation

Attributes
Self Propelled, Hydraulic Boom

Weight
7800 kg

Platform Rotation
160 Degree

Working Environment
Indoor & Outdoor

Overall Height
2480 mm

Minimum Turning Radius
2.5 m

Overall Length
7100 mm

Lowered Platform Height
2.2 m

Gradeability
30%

Outreach
8.0 m

Travel Speed
6 km/h

Platform Size
1800 x 800 mm

Noise Level
< 70 dB

Arm Jib Length
1.2 m

Overall Width
2300 mm

Drive Mode
4 Wheel Drive

DBA-16 -8 Articulated Boom Lift Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About DBA-16 -8 Articulated Boom Lift

Experience the triumphant power of the DBA-16 -8 Articulated Boom Lift, an offer that redefines top-notch elevation solutions. This majestic, self-propelled mobile elevated work platform promises unmatched versatility, featuring a 16-meter max lifting height, 8-meter outreach, and 360-degree continuous rotation. Its customizable platform, electric operation, and 4WD capability ensure optimal performance both indoors and outdoors. With a compact design, ergonomic controls, and non-marking tyres, this deal delivers excellence for lifting up to 230 kg safely and efficiently. Choose DBA-16 -8 for superior results, every time.

Features, Application Media, and Site of Application

The DBA-16 -8 Articulated Boom Lift boasts premium features including proportional controls, dual joystick operation, hydraulic boom, and a user-friendly ergonomic handle. Its powerful 360-degree continuous rotation and compact form make it ideal for confined areas. Suited for construction, maintenance, and industrial work, this top-notch machine excels in both indoor and outdoor environments. Whether in factories, warehouses, or building sites, the DBA-16 -8 is engineered for majestic performance where reliable elevation is needed.

Export Markets, Domestic Reach, and Certifications

With a robust presence as an exporter, manufacturer, and supplier in India, the DBA-16 -8 Articulated Boom Lift serves major export and domestic markets. Certified for quality and safety, each triumphant unit undergoes thorough checks before shipping. Fast delivery and meticulous order completion ensure customers receive their shipped goods promptly and in top condition. Trust us to meet your elevation needs with industry-recognized standards and a dedicated approach to fulfilling every order.

FAQ's of DBA-16 -8 Articulated Boom Lift:

Q: How does the DBA-16 -8 Articulated Boom Lift ensure operator safety during elevated tasks?

A: The DBA-16 -8 is engineered with advanced proportional controls, 360-degree continuous rotation, non-marking rubber tyres, and ergonomic handles, ensuring operator safety and precise maneuverability on various surfaces.

Q: What types of applications is the DBA-16 -8 suitable for?

A: This articulated boom lift is ideal for construction, facility maintenance, industrial sites, warehouses, and both indoor and outdoor applications, thanks to its robust design and versatile performance features.

Q: Where can the DBA-16 -8 be delivered and how does the shipping process work?

A: We cater to both domestic and international markets, shipping the DBA-16 -8 swiftly after order completion. All goods are carefully packaged and inspected to meet quality standards during transport.

Q: When can I expect my order to be shipped after placing one?

A: Orders are processed promptly, with shipment typically initiated upon order completion and quality inspection. Delivery timelines may vary based on your location and shipping method.

Q: What benefits does the hydraulic drive motor provide?

A: The hydraulic drive motor delivers powerful, efficient movement, ensuring the lift operates smoothly and can handle demanding tasks even on uneven terrain with excellent gradeability.

Q: How does the platform's customizable size and 160-degree rotation benefit users?

A: The customizable platform, complemented by 160-degree platform rotation, allows users flexibility in positioning and access, making it easier to reach challenging areas and adjust work angles efficiently.
