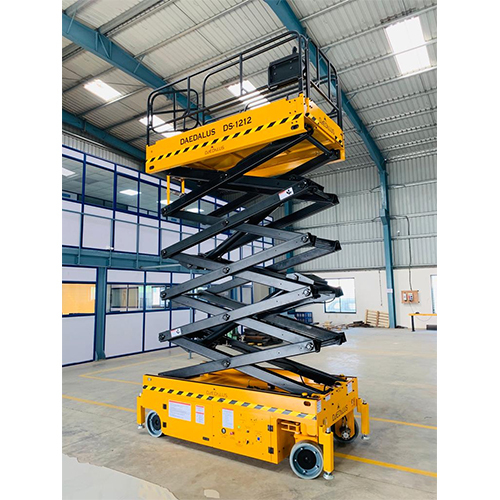

DS-1212 1.9V Self-Propelled Scissor Lift

Send Inquiry

Request To Call Back

DS-1212 1.9V Self-Propelled Scissor Lift

Get a Price/Quote

MOQ : 1 Piece

DS-1212 1.9V Self-Propelled Scissor Lift Specification

Motor Type
Hydraulic Motor

Wheel Type
Non-marking solid tyres

Control System
Proportional Control System

Features
Emergency stop button, Automatic braking system

Rotation Type
Fixed platform

Lifting Speed
Up/Down 36/31 sec

Equipment Type
Industrial Lift

Handle Type
Foldable guardrail

Condition
New

Lifting Capacity
320 kg

Max. Lifting Load
320 kg

Max. Lifting Height
12 m

Power Source
Battery

Power Consumption
2.2 kW

Voltage
24V DC

Feature
Non-marking tyres, Emergency lowering device, Proportional controls

Attributes
Self-propelled, Battery operated

Drive Speed (stowed/raised)
3.2/0.8 km/h

Overall Width
1.15 m

Max. Occupants on Platform
2 persons

Ground Clearance (stowed)
100 mm

Battery Specification
4 6V / 225Ah

Max. Drive Height
12 m

Hydraulic Tank Capacity
13 L

Operating Temperature
-20C to +40C

Platform Size
2.26 m x 1.12 m

Overall Height (Guardrails folded)
1.81 m

Overall Height (Guardrails up)
2.41 m

Min. Turning Radius (outside)
2.3 m

Charger
24V/30A

Gradeability
25%

Min. Turning Radius (inside)
0 m

Overall Length
2.48 m

Weight
3200 kg

DS-1212 1.9V Self-Propelled Scissor Lift Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About DS-1212 1.9V Self-Propelled Scissor Lift

Purchase the DS-1212 1.9V Self-Propelled Scissor Lift online and experience the power of invincible engineering. This pivotal lift is expertly designed for industrial settings, offering a polished balance between performance and safety. With non-marking tyres and a robust 12 m maximum drive height, it ensures seamless and reliable operation. Boasting emergency lowering, proportional controls, and a foldable guardrail, this lift is the last chance to elevate your workspace efficiency. Don't miss out-buy online now for a new era of productivity!

Versatile Industrial Lift for Multiple Surfaces

The DS-1212 1.9V Self-Propelled Scissor Lift is used for indoor and outdoor maintenance, installations, and warehousing tasks. Simply direct the scissor lift using its proportional controls to reach heights up to 12 m safely. Designed for smooth operation on concrete, tiles, and factory floors, its non-marking solid tyres ensure minimal surface impact. This lift is ideal for professionals seeking efficiency on diverse application surfaces.

Export Markets, Payment, and Delivery Information

Supplying to global clients, the DS-1212 is welcomed in main export markets like Asia, Africa, and the Middle East. Orders are efficiently dispatched with flexible payment terms such as T/T or L/C. Benefit from competitive sale pricing and prompt delivery times-expect your lift to reach you within a few weeks after order confirmation. Secure your supply today and experience seamless international service.

FAQ's of DS-1212 1.9V Self-Propelled Scissor Lift:

Q: How is the DS-1212 1.9V Self-Propelled Scissor Lift operated?

A: The lift is controlled via a proportional control system, allowing for precise maneuvering, and features an emergency stop button for optimal safety during operation.

Q: What applications are suitable for this scissor lift?

A: The DS-1212 is ideal for maintenance, installation, and warehousing on a variety of surfaces, including concrete and tiled floors, due to its non-marking tyres and battery operation.

Q: When will my order be dispatched after purchase?

A: Orders are typically dispatched within a few weeks following order confirmation, depending on the delivery location and payment terms agreed upon.

Q: Where can the DS-1212 1.9V Scissor Lift be used?

A: This lift is suitable for both indoor and outdoor use, making it a versatile choice for factories, warehouses, and construction sites.

Q: What are the benefits of choosing this scissor lift model?

A: Key benefits include a maximum 12 m lift height, safe self-propulsion, emergency controls, non-marking tyres, and a robust lifting capacity up to 320 kg.
