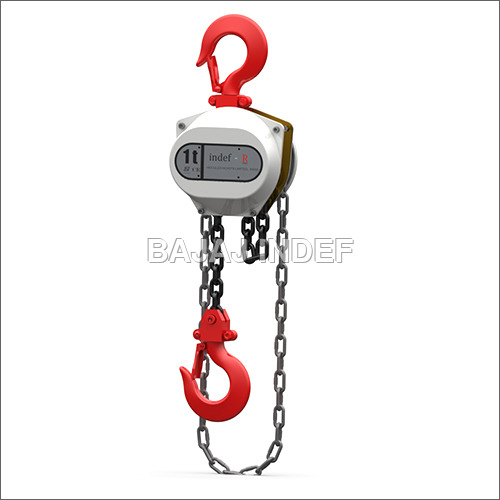

P Series Tripple Spur Gear Chain Pulley Block Manual Hoist

Product Description

Being a reliable firm, we are offering a comprehensive arrangement of P Series Tripple Spur Gear Chain Pulley Block Manual Hoist. It is easier to move than a wire rope hoist. In other words, provided hoist can be transported between sites. P Series Tripple Spur Gear Chain Pulley Block Manual Hoist is a mechanical device that helps to load heavy duty objects in a safer manner. It is designed in either a chain or wire rope configuration.

Product Specification :

Capacity	MT	1T	2T	3T	5T	7.5T	10T	15T	20T	25T	30T	40T
No. of Falls		1	2	11	2	3	4	6	8	10	12	16
Chain Size Dia.	mm	8	8	12	12	12	12	12	12	12	12	12
Running pull on hand chain	Kgs	26	28	55	49	50	61	50x2	54x2	70x2	54x4	62x4
Weight at 3 metre lift (approx) Hook Susp.	Kgs	21	30	55	70	100	126	715	755	840	1000	1250
Extra weight per additional meter lift (approx)	Kgs	2.9	4.3	4.8	8	11.2	14.4	22	28.5	37	40	57

Efficient Triple Spur Gear Mechanism

The triple spur gear mechanism enhances mechanical advantage, making the lifting process smoother, requiring less effort from operators. It ensures stable and consistent performance for daily industrial usage, improving operational efficiency in demanding environments.


Enhanced Safety Features

Safety is prioritized through double pawl springs and a dedicated load chain guide. These features minimize risks during operation and deliver reliable braking performance, thereby protecting users and ensuring secure load handling throughout the hoists lifecycle.


Versatile Mounting & Usage

Designed for industrial flexibility, the hoist can be installed using either eye suspension or trolley suspension. The low headroom profile facilitates use in confined spaces, making it suitable for factories, warehouses, and varied material handling tasks.
